Large Size Tablet-Experience Cutting-Edge Technology with Raypodo’s Android Touchscreen Monitors

Explore Raypodo’s diverse range of large size tablet, touchscreen monitors, engineered for robust performance and flexibility. Available in sizes from 15.6 to 65 inches, these devices are encased in a durable metal cover, offering both touchscreen and non-touchscreen options to suit various user preferences. Perfect as wall mount touchscreen monitors or large size android tablets, these versatile displays are ideal for numerous applications, providing reliable and high-quality performance.

Large size Tablet Product Specifications:

Large size Tablet System:

– CPU (Optional):
– Rockchip RK3566 up to 1.8GHz, 64-bit
– Rockchip RK3568 Quad-core Cortex-A55 up to 2.0GHz
– Rockchip RK3288 Quad-core Cortex-A17 up to 1.8GHz
– Rockchip RK3399 Dual-core Cortex-A72 up to 1.8GHz, Quad-core Cortex-A53 up to 1.4GHz
– GPU:
– Mali-G52-2EE high performance GPU (RK3566 & RK3568)
– Mali-T764 GPU (RK3288)
– Mali-T860 GPU (RK3399)
– NPU: Supports 0.8T & INT8/INT16
– RAM: Standard 2GB LPDDR4X/LPDDR4 (RK3399 Standard 4GB RAM)
– Internal Memory: EMMC 16GB/32GB (optional), standard 16GB
– Operating System:
– Android 11 or Linux Ubuntu 18.04 (RK3566 & RK3568)
– Android 8.1 or Linux Ubuntu 18.04 (RK3288 & RK3399)
– Touch Screen: 10-Point capacitive touch

Display:

– Panel Sizes: Available from 10.1″ to 65″ LCD IPS panels, offering a wide range of options for different needs.
– Resolution: Options of 1280×800 or 1920×1080 providing clear and detailed visuals.
– Display Mode: Normally black, IPS ensuring vibrant colors and wide viewing angles.
– Luminance: 250cd/m² (Min) ensuring visibility in various lighting conditions.
– Aspect Ratio: 16:9/16:10 for optimal screen dimensions.

Network:

– WiFi: 802.11b/g/n for reliable wireless connectivity.
– Ethernet: 100M/1000M ethernet ensuring fast and stable wired connections.
– Bluetooth: Bluetooth 4.0 for seamless peripheral connections.

Interface:

– Card Slot: TF card slot supporting up to 128GB for additional storage options.
– USB: USB x2 for connecting various devices.
– HDMI: HDMI Output, customizable to both HDMI input and output with RK3568 chipset motherboard.
– RJ45 with POE: RJ45 port, supporting POE (IEEE802.3at/af) for select sizes (10.1″, 13.3″, 15.6″, 17.3″, 18.5″).
– Power Options: DC power input, also supports PSU based on customer request for flexible power solutions.
– Earphone: 3.5mm earphone + Microphone (Optional) for audio connectivity.

Function:

– Play Mode: Supports multiple playback modes such as loop, timing, and insertion for versatile media presentation.
– PTC Live Clock: Supported for real-time clock functionality.
– Auto ON/OFF: Supported for automated power management.
– Motion Sensor: Standard No Support Motion Sensor, customizable based on requirements.

Media Play:

– Video Format: Supports a wide range of formats including MPEG-1, MPEG-2, MPEG-4, H.263, H.264, VC1, RV, etc., up to 4K resolution.
– Audio Format: Compatible with MP3, WMA, AAC, etc., for versatile audio playback.
– Photo: Supports JPEG format for image display.

Accessories:

– VESA: Compatible with 75x75mm, 100x100mm, and 400x400mm mounts for flexible installation.
– Speaker: 2×1.5W/2×8Ω 2W, customizable based on customer request for enhanced audio performance.
– Microphone: Standard No Microphone, customizable to fit specific needs.
– Camera: Standard Front Camera 2.0 M/P, customizable based on customer requirements.
– Language: Multi-language support for global use.
– Color: Available in Black/White to match different environments.
– Adapter: Different power adapters based on screen size for optimal performance.

Product Features:

– Durability: Metal cover provides enhanced protection and longevity.
– Flexibility: Available in both touchscreen and non-touchscreen models to suit different user preferences.
– High Performance: Advanced CPU and GPU configurations with support for up to 4GB RAM and 32GB internal storage for seamless multitaskingand Superior Display:
– High-resolution IPS panels with excellent luminance and wide viewing angles for a clear and vibrant visual experience.
– Connectivity: Comprehensive network options including WiFi, Bluetooth, and Ethernet, along with multiple ports for extensive connectivity.

Product Application Scenarios:

– Education: Enhances learning through interactive digital content and dynamic presentations, ideal for classrooms and training centers.
– Retail: Engages customers with vibrant product displays and interactive advertisements, perfect for retail stores and showrooms.
– Professional Settings: Ideal for offices and businesses for effective presentations, information kiosks, and collaborative workspaces, enhancing productivity and engagement.

Discover the ideal touchscreen monitor to enhance your digital experience at [Raypodo’s product page]

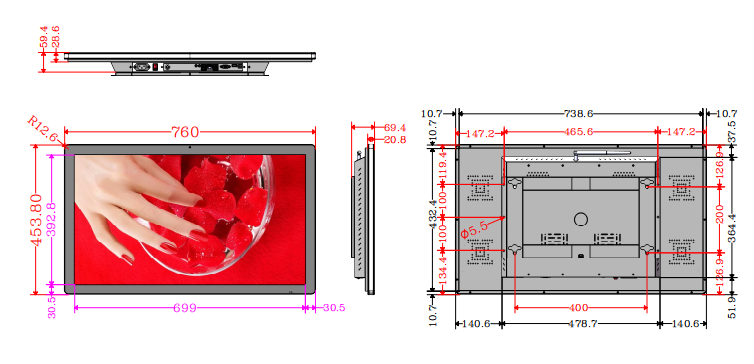

Large Size Tablet Product Drawing

For more product drawring or any other customized request, please contact our sales team!
