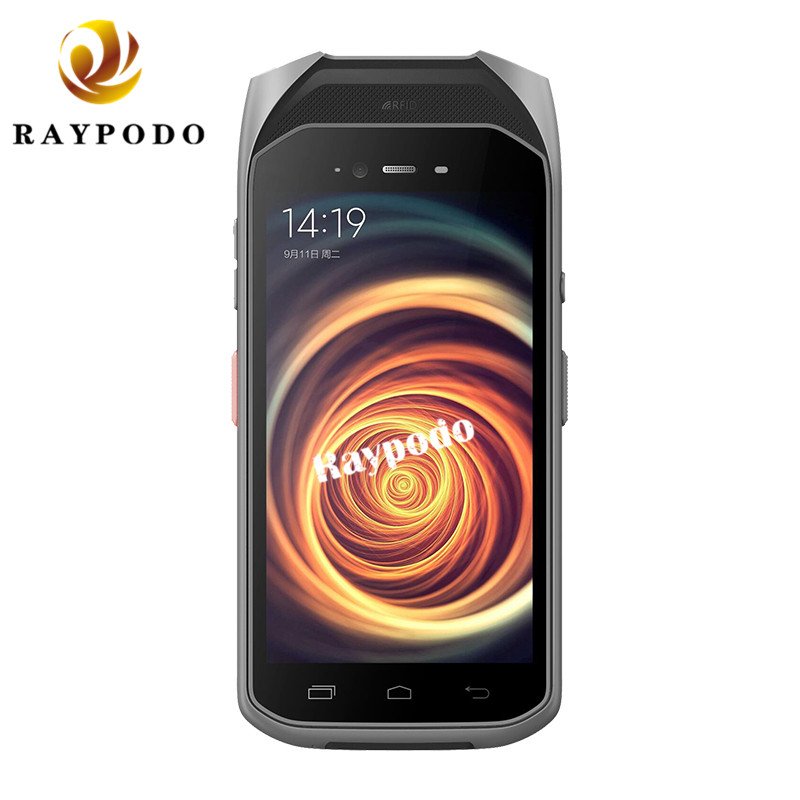

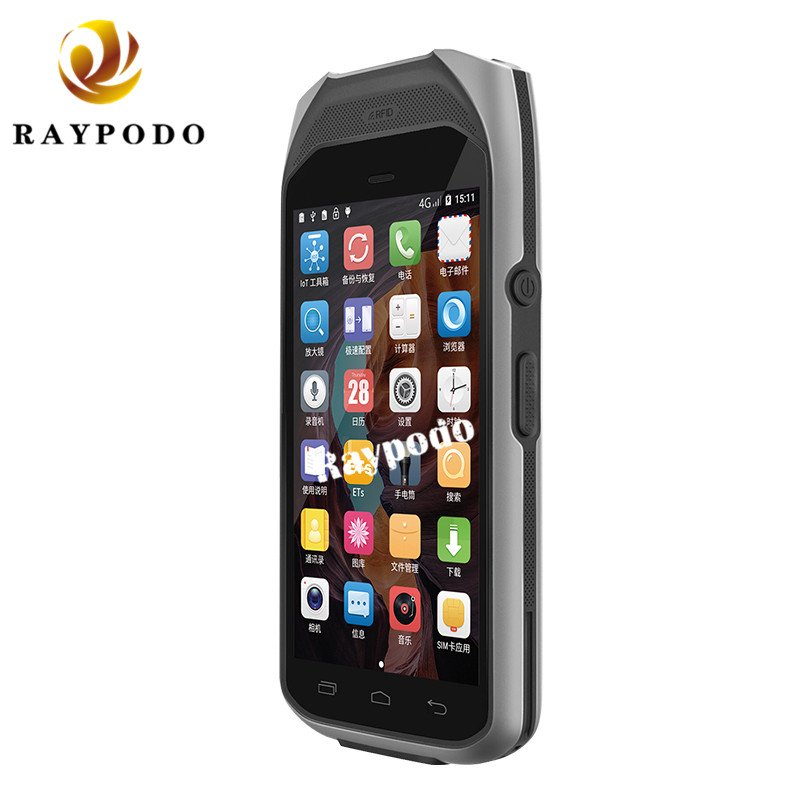

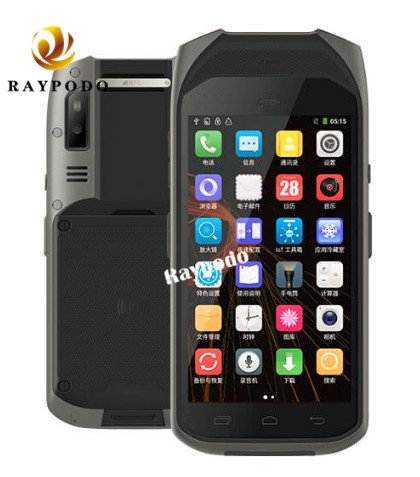

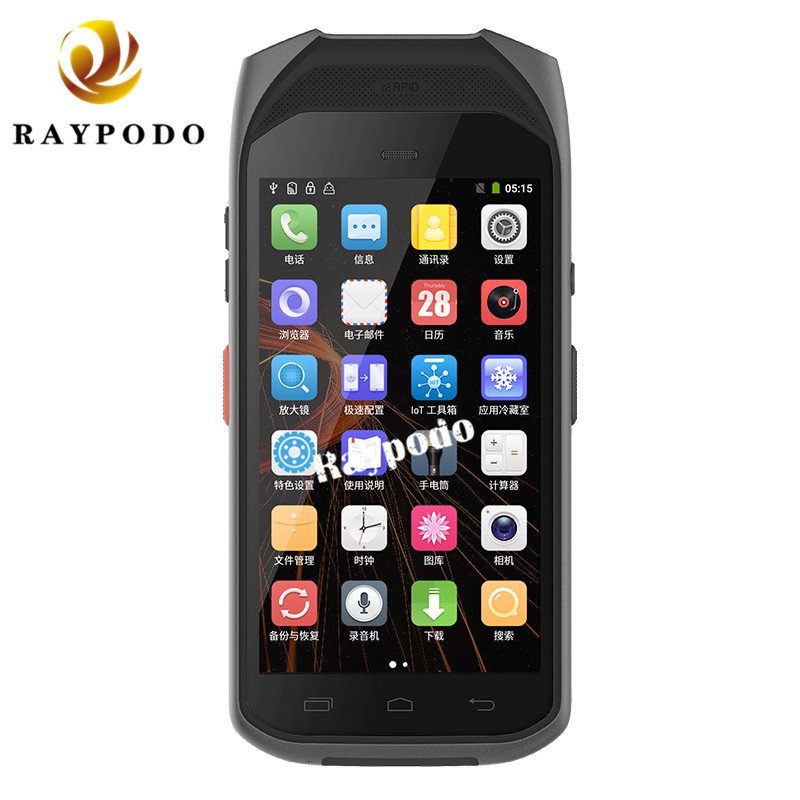

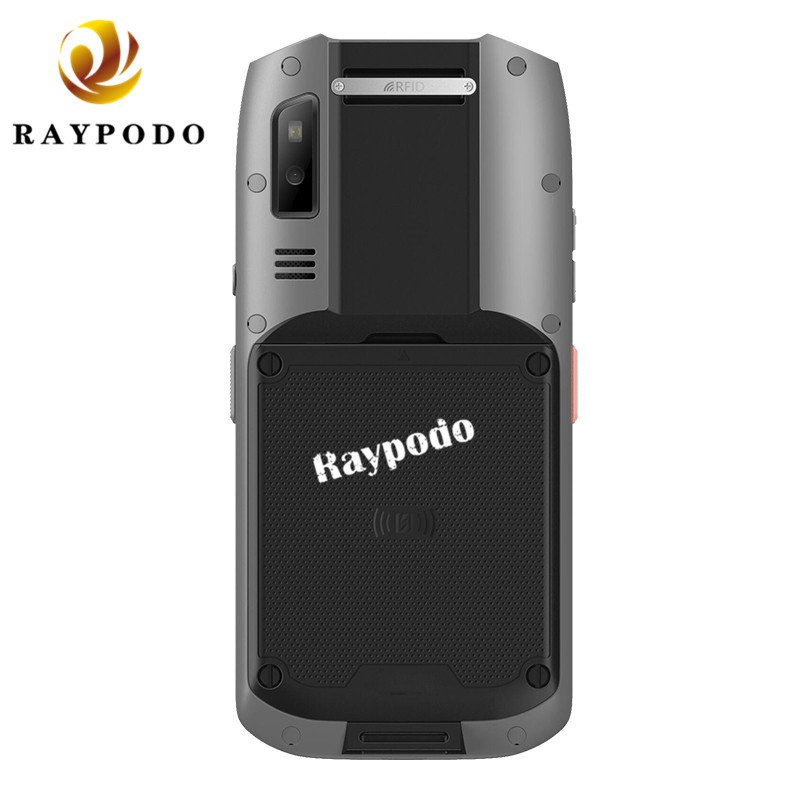

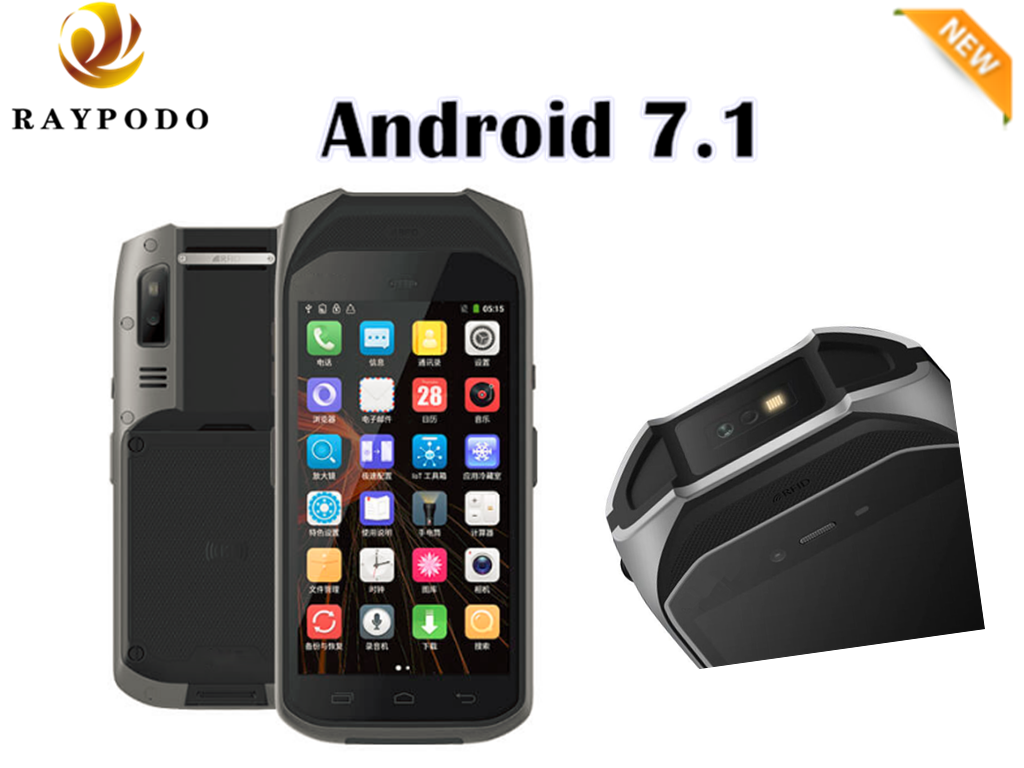

Raypodo OEM F880 PDA Barcode Scanner Devices, Support 1D / 2D UHF Function With Android 7.1 WIFI Rugged Handheld Data Collection Devices

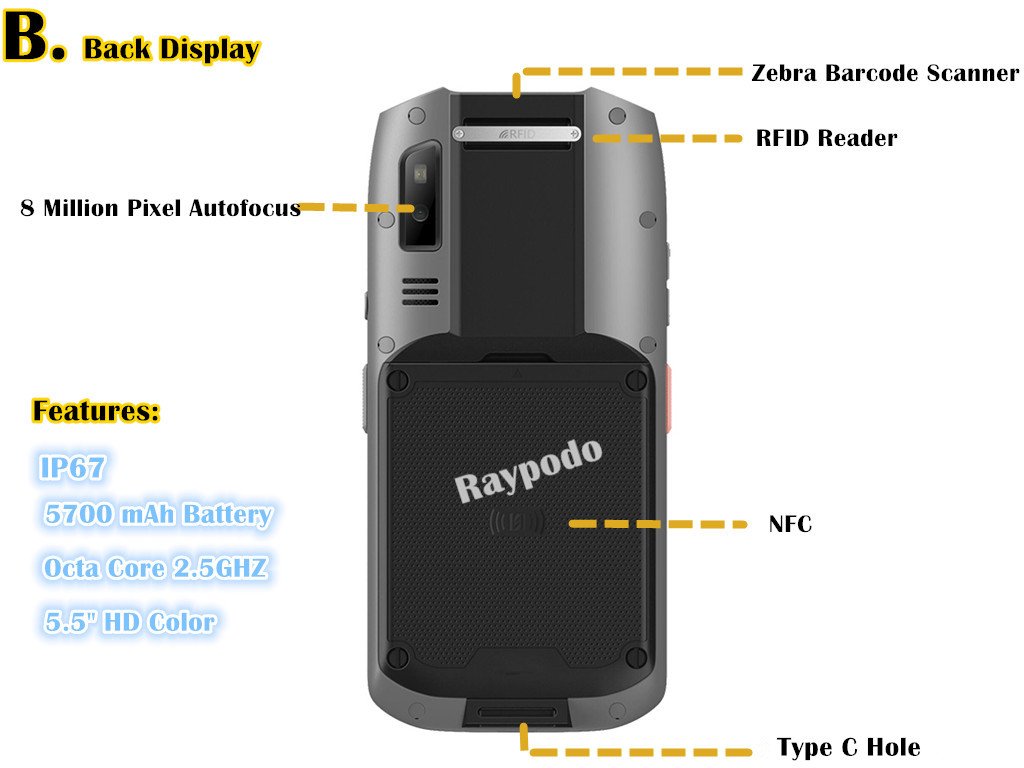

F880 PDA Product Features
| Data Collection |

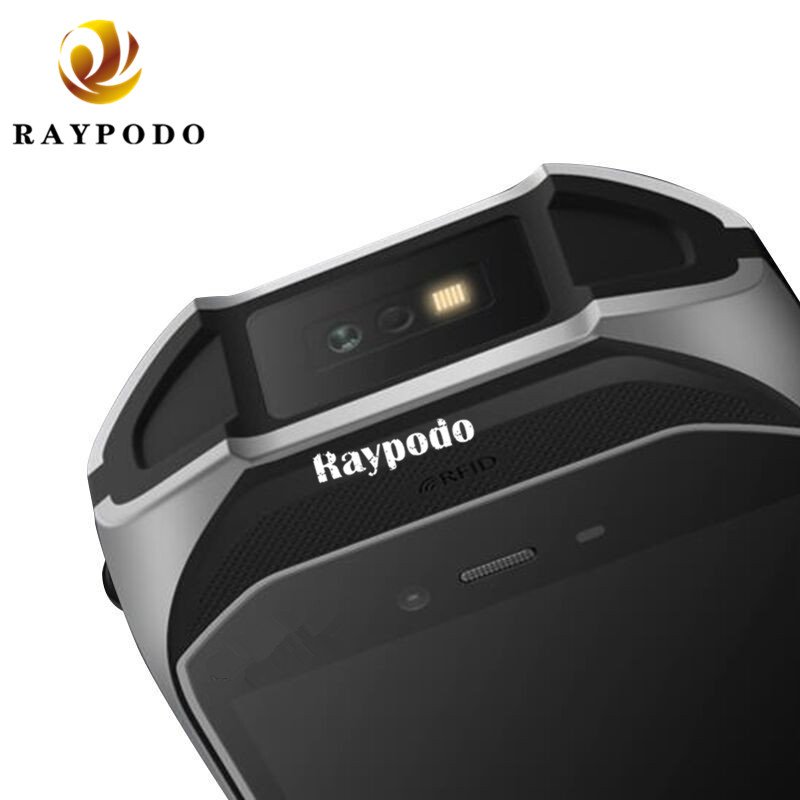

| 2D barcode collection: Zebra SE4710 |
| Supported 1D barcode types: UPC/EAN, Bookland EAN, UCC Coupon Code, ISSN EAN, Code 128, GS1-128, ISBT 128, Code 39, Trioptic Code 39, Code 32, Code 93, Code 11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, Korean 3 of 5, Matrix 2 of 5, Inverse 1D, GS1 DataBar, Composite Codes, etc. Supported 2D barcode types: PDF417, MicroPDF417, Data Matrix, Data Matrix Inverse, Maxicode, QR Code, MicroQR, QRinverse, Aztec, Aztec Inverse, Postal Codes: USPostnet, US Planet, UK Postal, Australian Postal, Japan Postal, Netherlands KIX Code, USPS 4CB/One/Intelligent Mail, UPS FICS Pstal, etc. |
| camera Front camera: 2 MP Rear camera:8 MP (13 MP compatible), auto-focusing; support flashlight |
| NFC Operating frequency: 13.56MHZ Support agreement : MifareClassic (MF1) NDEF, NfcV (15693), Ultralight (MF0), IsoDep (Quasi CPU MF3), IsoDep (CPU) Reading distance: 0-5cm (depending on the label and antenna) |
| RFID Operating frequency: 840-960MHz or 865-868 MHz Support agreement: ISO18000-6C/EPC C1G2 Reading distance:3m (depending on the label and antenna) |
| Security PSAM Supporting ISO7816 standard, supporting 2 PSAM cards |
| Sensors Light sensor, distance sensor, gravity acceleration sensor, geomagnetic transmission sensor, Hall sensor (optional) |
| Wireless Communication |
| WWAN GSM/GPRS/WCDMA/CDMA/TD-SCDMA/ TDD-LTE/FDD-LTE |
| WIFI WIFI frequency: 2.4GHz & 5GHz WIFI agreement : 802.11a/b/g/n/ac |
| GPS GPS BDSGLONASS |
| Bluetooth Bluetooth 4.2 |
| Others |
| Certification CE/CCC/UN38.3/RoHS/IP67 |
| Accessories Charger/USB cable/ battery |
| Optional accessories Triple desktop charger/ triple adaptor/ battery |
Product Parameter
| Physical Parameter |

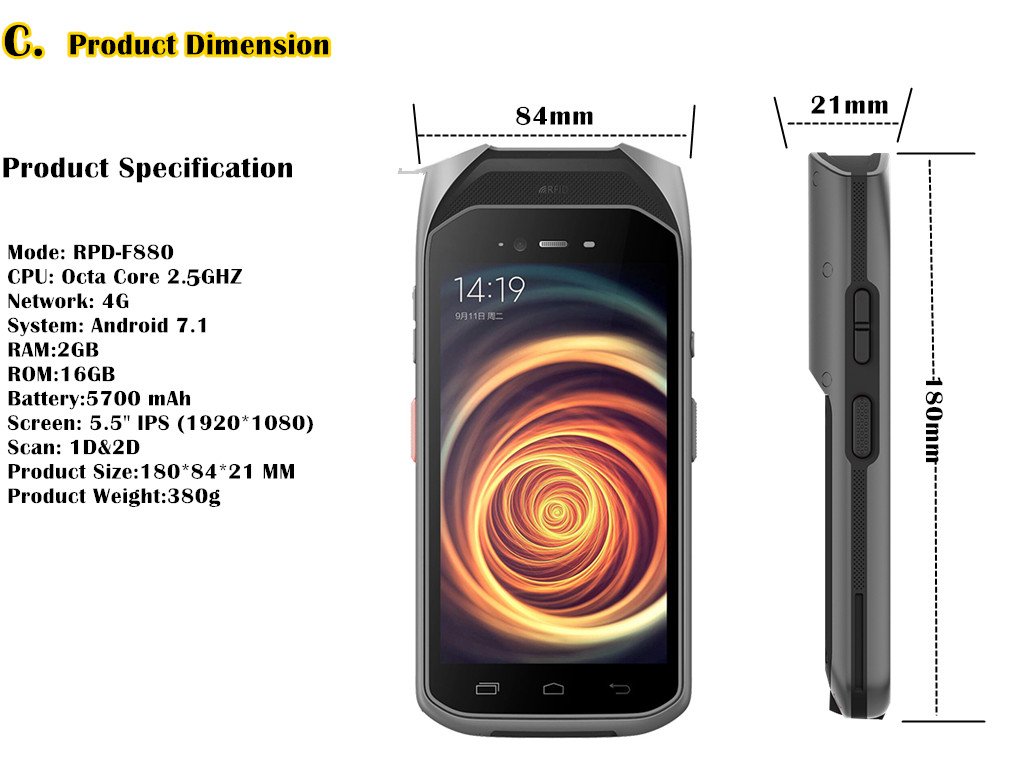

| Size 180×84 ×21 mm (Length×width×height) |
| Weight 380 gram (including battery) |
| Display 5.5 inch IPS screen Resolution: 1920*1080 |
| Touch panel Capacitance, supporting wet hand and glove-based input |
| Backlight LED Backlight |
| Battery Li-polymer, 5700mAh Uptime: 8 hours Standby time: 280 hours |
| Card slot 1 SIM card slot, 2 PSAM card slots I Micro SD (Maximum 32G) card slot |
| Communication interface Type-c, OTG |
| Network connections 4G, Wi-Fi, GPRS ,Bluetooth,GPS BD |
| Notification Warning Tone; Multi-color LED; Vibration |
| Keyboard On-screen Keyboard+3 Virtual Keys: Back, Home and Menu |
| Audio-frequency Microphone, Loudspeaker and Receiver |
| Keypad Power switch: 2 scan keys; volume keys (+,-) |
| Power adaptor Input: 100-240V, 50/60HZ 300mA Output: 5V, 2A |
| Performance Parameter |
| CPU MTK P25(MT6757CD) octa-core 2.5GHz |
| OS Android 7.1 |
| Memory Standard: 2GB RAM/16GB ROM Optional: 3GB RAM/32GB ROM |
| Working environment |
| Operating temperature -4℉ to 122℉/-20℃ to 50℃ |
| Humidity 5% to 85% (non-condensation) |
| Drop specification Within operating temperature range, it can withstand several drops from 4.9 feet / 1.5 m height to the concrete ground |
| Roll specification It can withstand 500 times of 1.6 feet / 0.5 m rolls; achieving and exceeding requirements in IEC roll standard |
| Vibration 4g SPK Sine (5Hz to 2KHz); 0.04g2/Hz randomness (20Hz to 2KHz); 60 minutes per axle, 3 axles |
| Thermal shock -40℉ to 140℉/-20℃ to 60℃ fast fade |
| Electrostatic protection +/- 10kv air discharge; +/-8kv contact electricity |
| IP Host IP67 |
Packaging and Shipping
Delivery Time: Shipped in 5 days after payment
Accessory: Battery 1 pcs ,USB Data Cable 1 pcs ,Adapter 1 pcs
Shipping:
1. By Express: We deliver goods by DHL or UPS with door to door service, normally it will take 5-6 days to delivery
2. By Air: It will take 5-8 days to deliver, customer can pick up goods from the airport by airway bill
3. By Sea: If you want, we can also arrange delivery by sea to the main ports of worldwide from Shenzhen.
delivery time will be 20-40 days accordingly.

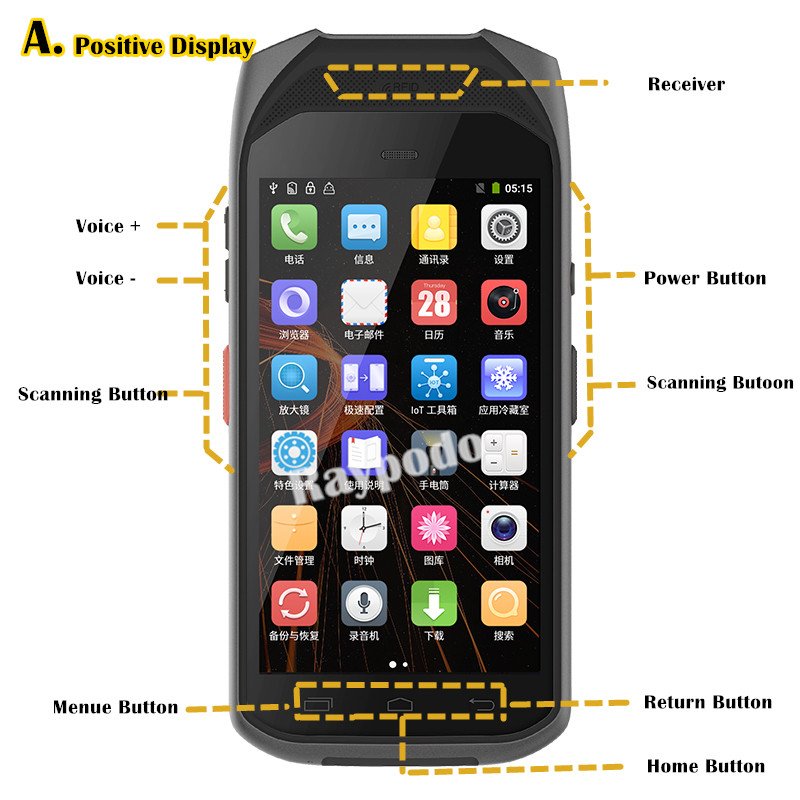

Product Display
