Description
PDA Industrial Handheld Terminal Windows CE 6.0 Barcode Scanner V5000S
Product Features
- The powerful data collection function
- Flexible application adaptability
- Wireless communication function
- Multiple data interfaces
- High data storage
- Dual system support， support Win CE 6.0 & Android system
- Barcode (1D) & QR Code (2D)
- IP65 Protection Grade
- USB, RS232 Interface
- Free SDK
Product Specification
Basic Features
| o.s. | Android 7.0/Windows CE 6.0 |
| CPU | Quad-Core 1.5GHz |
| Display | 3.5inch TFT-LCD VGA (480X640) color capacitive screen |
| RAM | 2GB |
| ROM | 16GB |
| Extended Memory | Micro SD slot, up to 128 GB |
| Barcode Scanner | 1D Laser/2D Imager |
Physical Characteristics
| Dimensions | 192mm x 73.8mm x 30mm |
| Weight | 385g (includes battery) 33keys: Number/Alphabet keyboard, Direction |
| Keyboard | button, Scan button, Power button, Backspace, Space, Home, Menu, Back, Reset button, etc. |
| Input | Chinese, English, handwriting, soft keyboard |
| Prompting Mode | Green, red and blue LED, speaker |

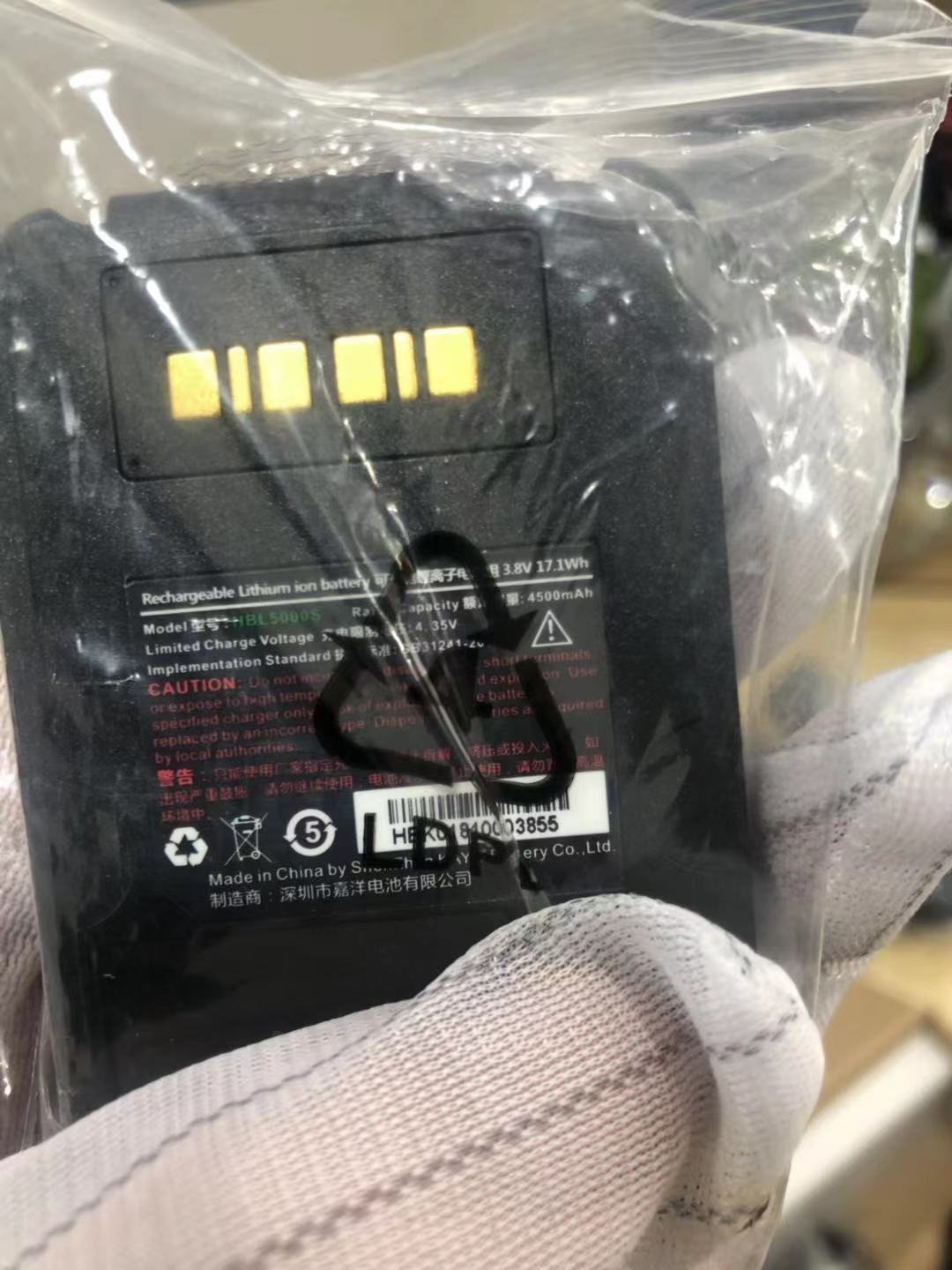

| Main Battery | Removable, rechargeable 3.8V 4500mAh lithium battery |
| RTC Battery | For real-time clock keeping |
Radio Communication
| Wi-Fi | IEEE 802.11a/b/g/n/ac/d/e/f/h/i/k/r/v |
| Bluetooth | Bluetooth 4.1 BLE |
| Radio Frequency | TDD-LTE:B38/B39/B40/B41 |
| FDD-LTE:B1/B3/B5/B7/B8 | |
| WCDMA:B1/B2/B5/B8 | |
| TD-SCDMA:B34/B39 GSM/EDGE/GPRS: 850/900/1800/1900 MHZ CDMA 1x |
Options
| Camera | 5.0 MP auto-focus camera with flash |
| GPS | GPS, A-GPS, BeiDou, GLONASS |
| HF: Supports 13.56Mhz, ISO14443A/B, and ISO15693 standard, Not compatible with pistol grip; UHF: 865~868MHz, 902~928MHz (Adjustable depending on country and region) | |
| RFID(optional) | EPC Frequency Band: IS018000-6B, IS018000-6C (EPC Global Classi Gen2) Read distance: 6-8 meters Read Speed: 200 times/s (200 tags in one second) Antenna Type: Circularly polarized antenna |
Peripherals and Accessories
| Expansion | Micro SD/TFX1, Micro SIM x2 |
| Interfaces | Mini USBX1, POGO PINx 1,3.5mm Audio Jack x 1 |
| Optional | Quad-Slot Battery Charger, Pistol Grip, |
| Accessories | Lanyard, Cradle |
User Environment
| Operating Temperature | -10~50*C(14 〜122’F) |
| Storage Temperature | -40~70t(-40~158°F) |
| Humidity | 5% ~ 95% (non condensing) |
| Drop Durability | 1.5m/1.2m |
| Sealing | IP64 |
Optional Accessories
pda

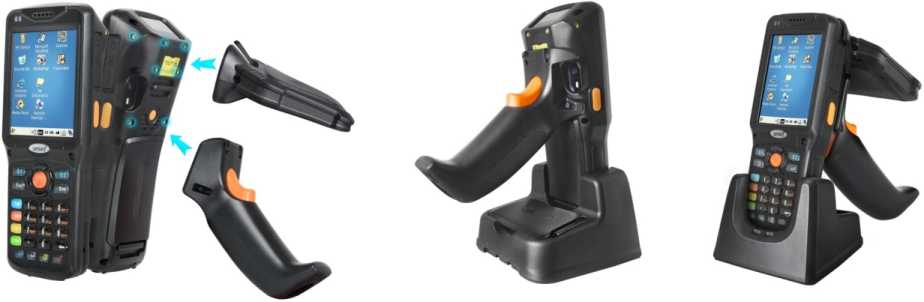

UHF Module & Pistol grip Cradle
