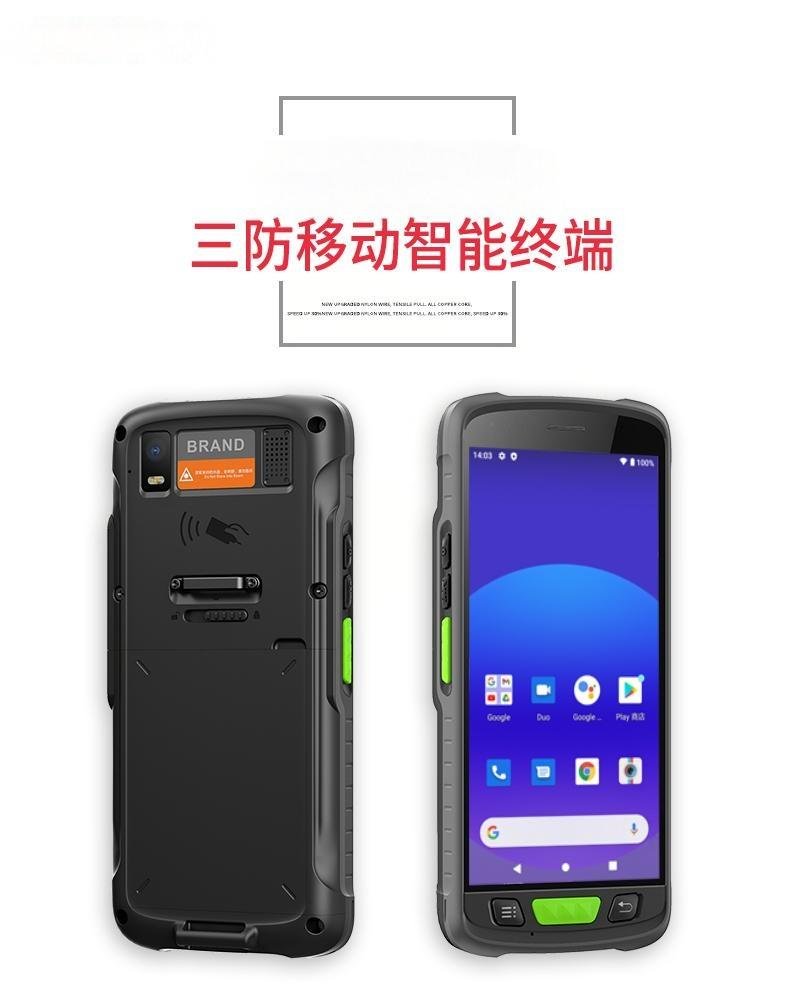

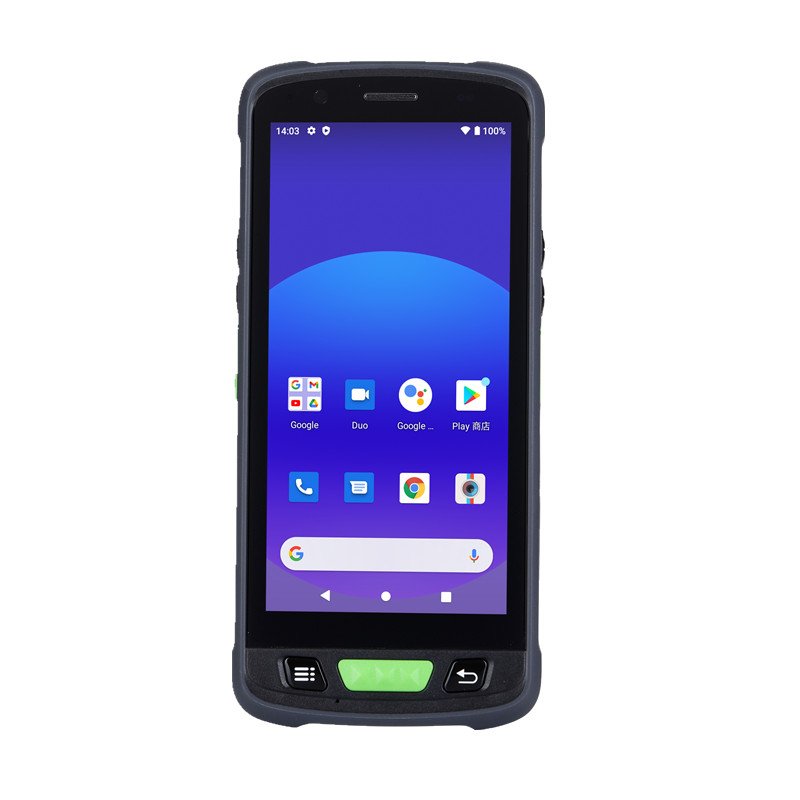

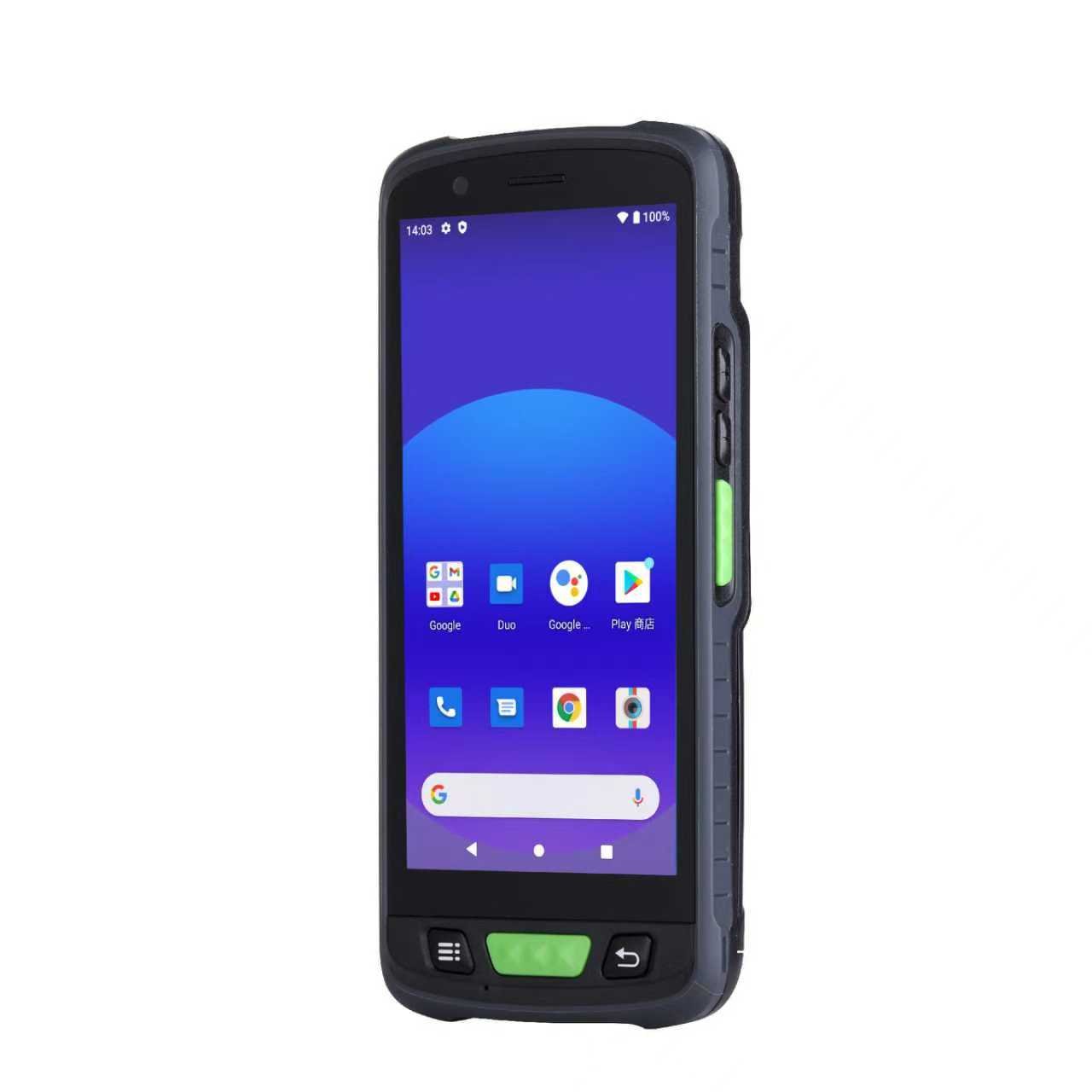

RPD-9000: The Definitive Rugged Industrial PDA – Unmatched Durability, Precision, and Connectivity

RAYPODO PDA

In the relentless environment of modern enterprise, where efficiency is paramount and downtime is costly, the tools you equip your workforce with must be more than just functional—they must be formidable. The RPD-9000 Rugged Industrial PDA​ is engineered to be that indispensable asset. This device transcends the conventional definition of a handheld; it is a fully integrated, enterprise-grade Personal Digital Assistant​ designed to conquer the most demanding challenges. By seamlessly merging the robust capabilities of a high-performance barcode PDA, a versatile QR code PDA, and offering advanced optional modules as an NFC PDA​ and RFID PDA, the RPD-9000 delivers a complete mobile solution. It empowers your team with unparalleled data capture accuracy, military-grade durability, and seamless global connectivity, setting a new standard for what a professional PDA​ can achieve.

Uncompromising Ruggedness: Built for the Real World

The RPD-9000’s design philosophy is rooted in absolute resilience. While consumer devices are fragile liabilities in industrial settings, this PDA​ is built as a durable investment. It boasts an IP65 rating, guaranteeing complete protection against dust ingress and low-pressure water jets from any direction. This makes it impervious to rain, spills, and the pervasive dust found in warehouses, construction sites, and manufacturing plants.

Its durability is tested beyond standards. The device is certified to withstand repeated 1.5-meter drops onto concrete across all six sides—a critical feature for environments where accidental falls are a daily occurrence. Furthermore, it endures 1000 rolls from a 0.5-meter height on all contact areas, ensuring it can survive the rough handling of a fast-paced work shift. The RPD-9000 operates flawlessly in extreme temperatures from -20°C to 50°C (-4°F to 122°F) and can be stored in conditions from -40°C to 70°C (-40°F to 158°F). With an operating humidity range of 5% to 95% (non-condensing), this Personal Digital Assistant​ is truly a global tool, ready to perform anywhere, in any condition.

Precision Data Capture: The Core of an Intelligent Barcode PDA

At the heart of the RPD-9000 is its advanced data capture system, establishing it as a leader among barcode PDA​ solutions. The high-performance 2D imager scanner reads all major 1D and 2D symbologies with exceptional speed and accuracy. As a dedicated QR code PDA, it effortlessly deciphers QR codes, making it ideal for retail, ticketing, and authentication applications.

For specialized asset management, the RPD-9000 offers optional integrated modules. The NFC PDA​ option operates at 13.56MHz, supporting protocols like ISO14443A/B and ISO15693 for secure, short-range communication with NFC tags, M1 cards (S50, S70), and CPU cards—perfect for tool tracking, access control, and maintenance logs. For large-scale inventory management, the RFID PDA​ option is a game-changer. It enables the simultaneous reading of multiple UHF RFID tags from a distance, revolutionizing inventory counts by eliminating line-of-sight scanning and reducing a process that once took days to a matter of hours.

Barcode Scanning Specs:

Scanner Type:​ 2D Imager.
1D Symbologies:​ UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, RSS.
2D Symbologies:​ PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode.
Postal Codes:​ US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX).
NFC Reader (Optional) Specs:
Frequency:​ 13.56MHz.
Protocols:​ ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2.
Compatibility:​ M1 card (S50, S70), CPU card, NFC tags.
Read Range:​ 2-5cm.

Powerful Performance and Seamless Connectivity

The RPD-9000 is powered by a robust 2.0GHz Octa-core processor and 4GB of RAM, ensuring smooth, lag-free performance even when running complex warehouse management systems, custom field service applications, and multiple data capture utilities simultaneously. With 64GB of internal storage (expandable to 128GB via a Micro SD card), there is ample space for applications, databases, and operational logs.

Staying connected is critical, and this PDA​ delivers comprehensive global connectivity. It supports dual-band Wi-Fi (802.11 a/b/g/n/ac, 2.4GHz/5GHz) for high-speed local network access and a full suite of 4G LTE bands (B1/B3/B5/B7/B8/B20/B38/B39/B40/B41) with 3G and 2G fallbacks, ensuring reliable data transmission anywhere. Bluetooth 5.0 allows for seamless pairing with peripherals like headsets and printers, while multi-constellation GNSS support (GPS, GLONASS, BeiDou, Galileo) provides pinpoint outdoor positioning for logistics and field service teams.

Performance & Communication Specs:

OS:​ Android 11.
CPU:​ 2.0GHz Octa-core.
Memory:​ 4GB RAM + 64GB ROM.
Expansion:​ Micro SD/TF port (Max 128GB).
WI-FI:​ 802.11 a/b/g/n/ac, dual-band (2.4G/5G).
Cellular:​ 2G (GSM: 850/900/1800/1900MHz), 3G (WCDMA: 850/900/1900/2100MHz; CDMA EVDO: BC0), 4G LTE (B1/B3/B5/B7/B8/B20/B38/B39/B40/B41).
Bluetooth:​ 5.0.
GNSS:​ GPS/AGPS, GLONASS, BeiDou, Galileo.

Ergonomic Design for All-Day Productivity

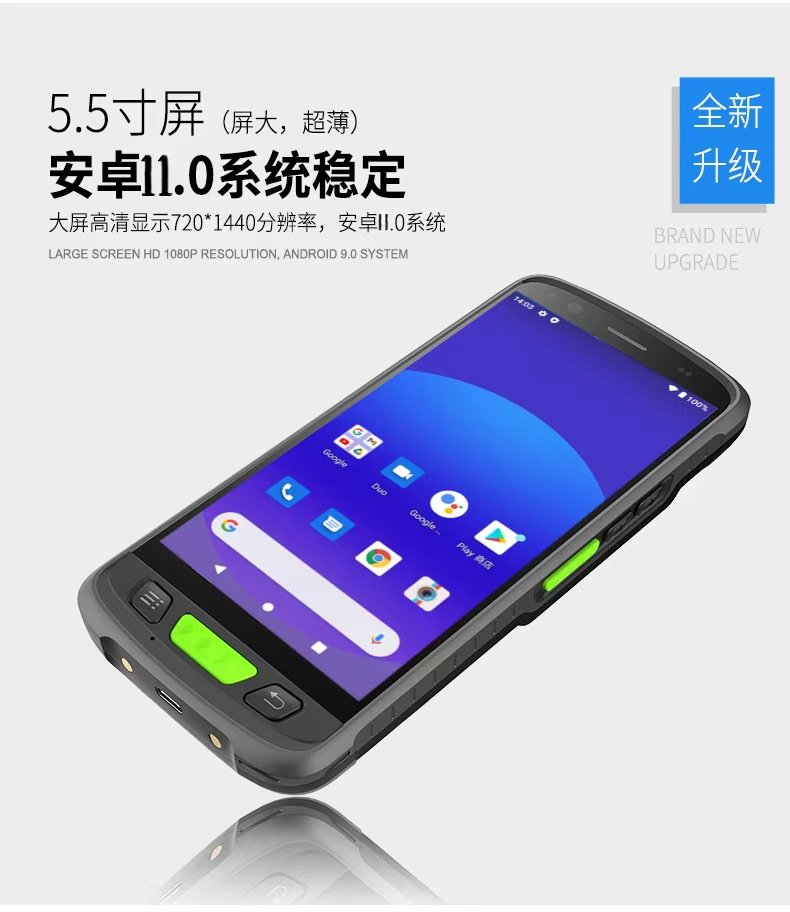

Despite its rugged build, the RPD-9000 is designed for user comfort and efficiency. Its compact form factor (170mm x 79mm x 17mm) and light weight (<350g) make it easy to handle for extended periods. The 5.5-inch High-Definition IPS LTPS display (1440×720) offers a bright, clear, and wide viewing angle, ensuring perfect readability indoors and in direct sunlight.

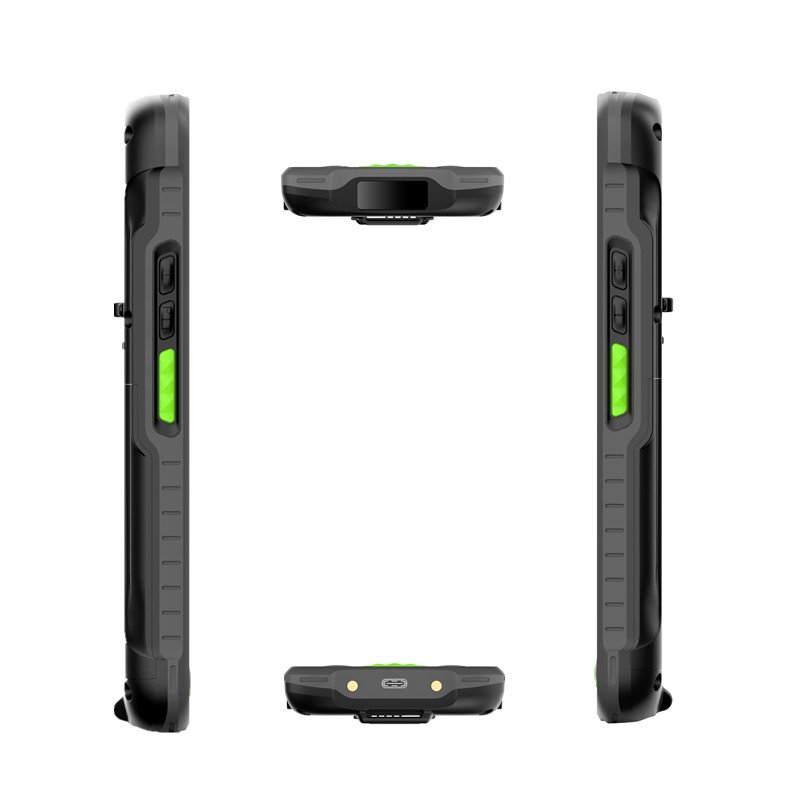

The device features a strategic keypad layout to maximize productivity. It includes three dedicated scan keys for ambidextrous operation, a PTT (Push-to-Talk) key for instant communication, and menu/return keys for easy navigation. This physical button setup, combined with touch input and a virtual keyboard, allows for efficient operation even while wearing gloves. Powering this productivity is a substantial 4600mAh lithium-polymer battery, engineered to last a full shift and beyond.

Physical & Display Specs:

Dimensions:​ 170mm(L) x 79mm(W) x 17mm(D).
Weight:​ <350g.
Display:​ 5.5-inch HD+ (1440×720), IPS LTPS.
Battery:​ 4600mAh Li-polymer.
Interfaces:​ USB Device, Type-C, OTG.
Keys:​ 1 power key, 3 scan keys, 2 volume keys, 1 PTT key, 1 menu key, 1 return key.
Camera:​ 13MP AF rear camera with flash, 8MP front (optional).

Comprehensive Application Scenarios

The RPD-9000 is the ultimate Personal Digital Assistant​ for a wide range of industries:
Supply Chain & Logistics:​ As a powerful barcode PDA​ and QR code PDA, it streamlines receiving, picking, packing, and shipping. The RFID PDA​ option transforms inventory management.
Retail & Hospitality:​ Enable mobile checkout, price checks, and inventory management on the sales floor with this versatile PDA.
Field Service & Manufacturing:​ Technicians use the NFC PDA​ function to scan equipment tags for instant service access. On production lines, it tracks work-in-progress.
Transportation & Delivery:​ Couriers scan package QR codes, capture digital signatures, and stay connected with robust 4G.
Public Safety & Utilities:​ The device’s durability and communication features make it suitable for inspectors and utility workers needing a tough, connected PDA​ for field reporting.

Conclusion: The Investment That Powers Your Productivity

The RPD-9000 Rugged Industrial PDA is more than a device; it is a strategic platform for enterprise mobility. It successfully consolidates the critical functionalities of a high-accuracy barcode PDA, a versatile QR code PDA, and the advanced capabilities of an optional NFC PDA​ and RFID PDA​ into a single, ruggedized Personal Digital Assistant. By choosing the RPD-9000, you are investing in a tool that enhances operational accuracy, boosts workforce productivity, minimizes downtime, and delivers a rapid return on investment. It is the definitive choice for businesses that refuse to compromise on performance, durability, or intelligence.
