A64 Motherboard Overview
The board integrates multimedia decoding, LCD driver, Ethernet, WIFI, BT4.0, and power amplifier in one, supports most of the current popular video and picture format decoding, and is compatible with driving various TFT LCD displays, which greatly simplifies the system design of the whole machine, It is very suitable for Android network all-in-one machine, video advertising machine, and picture frame advertising machine.
A64 Motherboard Features
- High integration. Integrate USB/LVDS/Ethernet/WIFI/BT4.0 (optional) in one, simplify the design of the whole machine, and insert SD card.
- High definition. Support 1080P/H.265 video decoding and various LVDS signal LCD display
Show screen. - Comes with a power amplifier. Support dual-channel Class D 8R/2W power amplifier.
- Rich interfaces. It supports USB/serial port/GPIO/ADC interface expansion, which can meet the mainstream peripherals on the market.
- Complete functions. Support horizontal and vertical screen playback, video split screen, rolling subtitles, timing switch, USB data import, and other functions.
- Convenient management: The user-friendly playlist creation software is convenient for the management and control of advertisement playback. Play log to facilitate understanding of the playback situation.
Appearance and interface diagram

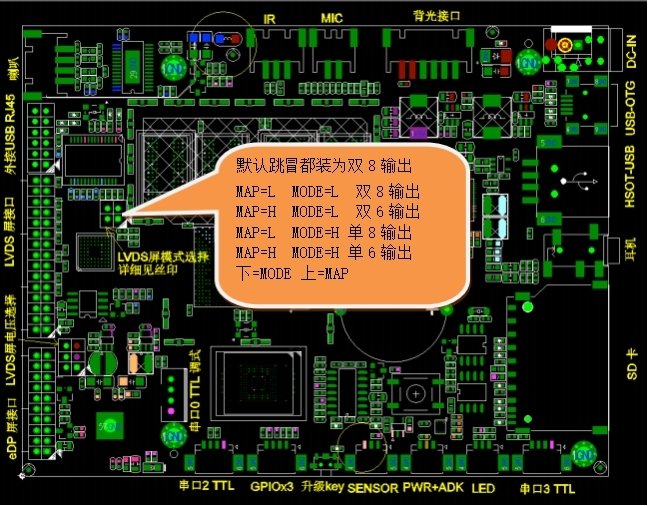

Android A64 motherboard Front

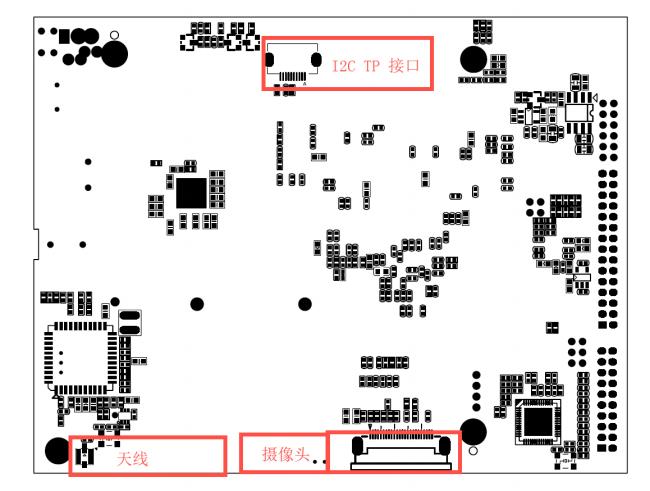

Android A64 motherboard Back
Basic Function List
| Main Hardware indicators | |
| CPU | All Winner A64,64bit,Quad Core,Corte-A53, |
| RAM Memory | 1G DDR3(Optional 2G) |
| ROM | EMMC8G/16(Optional) |
| Decoding resolution | Support 1080P/H.265 |
| Operation system | Max support Android 6.0, if need higher version, please choose RK3288 or RK3399 solution |
| Play Mode | Support multiple playback modes such as looping, timing, interstitial, etc. |
| Network | Enternet, support WIFI, wireless peripheral expasion |
| Video Format | Support wmv、 avi、 flv、 rm、 rmvb、 mpeg 、 ts、 mp4, etc |
| Image Format | Support BMP、 JPEG、 PNG、 GIF etc. |
| USB2.0 | 2* USB HOST |
| Ethernet | 1* 10M/100M adaptive Ethernet |
| LVDS output | 1 *drive 50/60Hz LCD Screen |
| Audio output | Left and right channel output 8R/2W speakers |
| Real-Time Clock | Support |
| Hardware Watchdog | Support |
| Timer switch | Support |
PCB Drawing
