1. INNOLUX 10.1-inch GENERAL DESCRIPTION

1.1 OVERVIEW

G101ICE-L01 is a 10.1” TFT Liquid Crystal Display module with LED Backlight units and 40 pins LVDS
interface. This module supports 1280 x 800 WXGA mode and can display 16.2M/ 262k colors. The LED
driving device for Backlight is built in PCBA.

1.2 FEATURES

– WXGA (1280 x 800 pixels) resolution
– DE (Data Enable) only mode
– LVDS Interface with 1pixel/clock
– Wide operating temperature.
– RoHS compliance

1.3 APPLICATION

• TFT LCD Monitor
• Factory Application
• Amusement

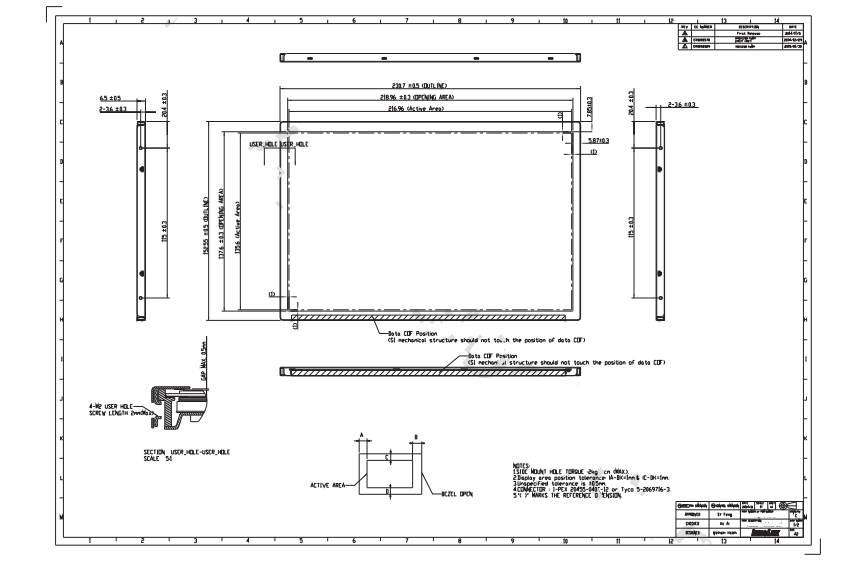

INNOLUX 10.1 inch Drawing

INNOLUX 10.1 inch
